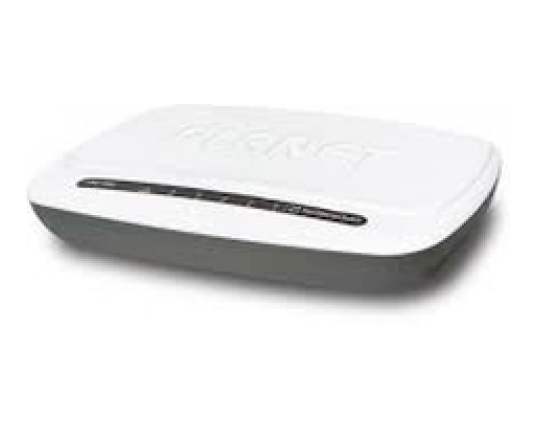

PLANET preklopnik (Switch) 5-port 10/100Base-TX

Detaljan opis

Key Features - Comply with IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX - 5-port 10/100Mbps Auto-Negotiation ports - 10/20Mbps, 100/200Mbps Auto-sensing - Compact size design for wall mount or desktop placement - High performance Store-and-Forward Switching Architecture - Runt and CRC filtering - Flow control (Back Pressure) supports in half-duplex mode - 1K MAC Address Table, automatically learning and aging - LED indicators array for easy diagnostic, troubleshooting - Plug-and-Play Installation - Auto-MDI/MDIX on each port Hardware Specification - Network Connector: 5-port RJ-45 for 10/100Base-TX - Switch Throughput: 0.74Mpps - Switch Fabric: 1Gbps - MAC Address: 1K MAC address table with Auto learning function - Shared Buffer: 384K - Power Requirement: 9V DC, 700mA - Operating Environment: 0 - 50 Degree C, 5% - 95% RH - Storage Environment: -20 - 70 Degree C, 5% - 95% RH - Dimension (W×D×H ): 184×110×30 mm Switch Specification - Switch Architecture: Store-and-Forward - Flow Control: IEEE 802.3x full duplex operating and flow control Standard Compliance - Network Standard: * IEEE 802.3 10Base-T * IEEE 802.3u 100Base-TX * IEEE 802.3x Flow Control and Back pressure - EMI: FCC Class B, CE
