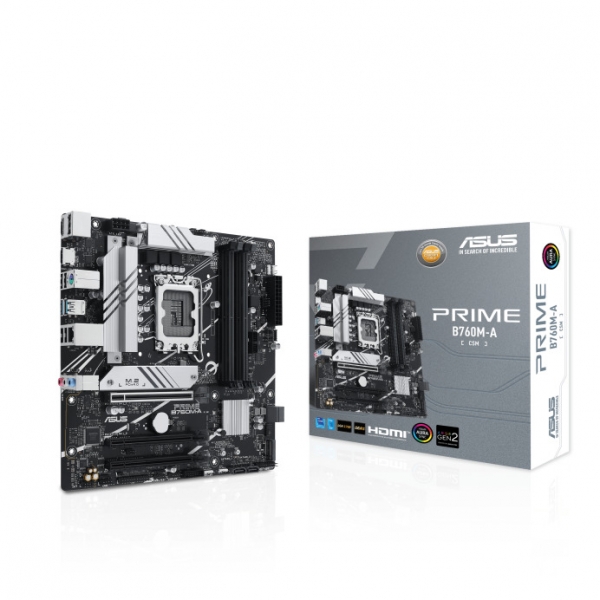

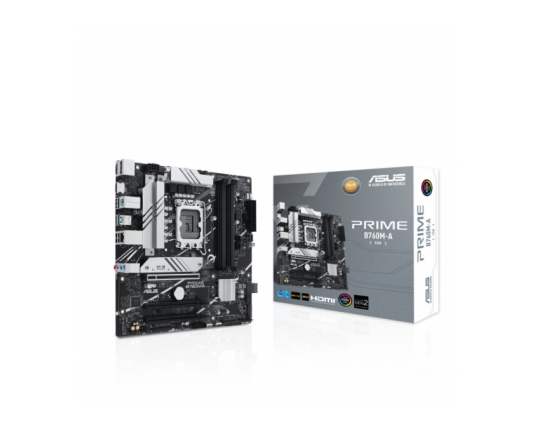

Asus MB PRIME B760M-A-CSM, S.1700, 4xDDR5/7200(OC), PCIe 4.0, 2×HDMI/DP, mATX

Detaljan opis

Specifikacije
- Model: ASUS PRIME B760M-A-CSM
- Format: mATX (24,4 × 24,4 cm)
- Chipset: Intel B760
- CPU: LGA1700 (Intel 12./13./14. gen, Pentium Gold, Celeron)
- Podrška: Intel Turbo Boost 2.0 / 3.0
- Memorija: 4× DDR5, do 128 GB
- Brzine: do 7200+ MHz (OC), Dual Channel, XMP
- Grafika izlazi: 1× DisplayPort, 2× HDMI (do 4K@60Hz)
- PCIe utori:
- 1× PCIe 4.0 x16
- 1× PCIe 4.0 x16 (x4 mode)
- 1× PCIe 4.0 x16 (x1 mode)
- Pohrana:
- 2× M.2 (PCIe 4.0 x4)
- 4× SATA 6 Gb/s (RAID 0/1/5/10)
- Mreža: 2.5 Gb LAN (Realtek)
- USB:
- Stražnji: 2× USB 3.2 Gen2, 4× USB 2.0
- Prednji: do 10 USB portova (uključujući USB-C)
- Audio: Realtek 7.1 HD Audio (24-bit/192 kHz)
- Stražnji I/O: USB, DisplayPort, 2× HDMI, LAN, 3× audio, PS/2
- Interni konektori:
- ventilatori (CPU + kućište)
- RGB / ARGB headeri
- M.2, SATA, USB headeri
- TPM, COM, LPT, S/PDIF
- Posebno: ASUS 5X Protection III, Aura Sync, M.2 heatsink
- Softver: Armoury Crate, AI Suite 3, BIOS EZ Flash
- BIOS: 128 Mb UEFI AMI
- OS podrška: Windows 10 / 11 64-bit.
